Thunderbolt

ALUMINUM RACE FORKS

BATCH 3  IS COMING!

We still have some 20″ pro forks availble from batch 2.

Pre-order batch 3 now!

Thunderbolt

ALUMINUM RACE FORKS

BATCH 3 COMING!

We still have some 20″ pro forks availble from batch 2.

Pre-order batch 3 now!

$100 DEPOSIT

The third batch of this one-of-a-kind fork is in production. This is your chance to own the future.

Thunderbolt

Aluminum Race Forks

GLOSS BLACK CERAMIC w/ RAW LOGOS – $399.99
CUSTOM CERAMIC COATED – $449.99
(metallic/speciality paints/designs additional)
SPECIAL ‘DAYLIGHT OWNER’ CUSTOM CERAMIC PRICING – $399.99*
*Limited to anyone purchasing a new Daylight Frame. For this batch only, we are also offering this price to any original Daylight frame owners who have purchased in the last 12 months (from 9/1/2022).
—————————-
  • PRECISION MADE IN USA
  • 170mm tapered steer tube (1-1/8”-1.5“)
  • CNC Alloy top cap/compressor bolt with internal Steer tube threads for the top cap
  • 303mm axle to crown measurement on the 20” fork
  • OS20 – 333mm, 24”- 354mm, 26”- 395mm, 29”- 429mm
  • 20″, OS20, and 24″ are designed around a 1.5-1.85″ tire
  • 26″ and 29″ fit 2.3″ and larger tires
  • Custom aero-shaped fork legs
  • CNC’d 20mm drop outs (Fits most 10mm/3/8″ adapters)
  • Sizes: Pro 20”, OS20, 24″, 26″, & 29”
  • 623g (22oz.) for Pro 20″

2nd Production

 (We still have a few Pro 20″ available)

Shipping now

$399.99 Black/raw (+$50 for custom color)

Pre-order 3rd Production

(This production will be delivered in February/March)

ONLY $100 DEPOSIT!

PROTOTYPE TESTING

We’re currently in development on the Thunderbolt forks and have a small batch of prototypes that are being tested. On top of the lab testing, we have a couple top riders giving them the full ‘real world’ treatment. Stay tuned!

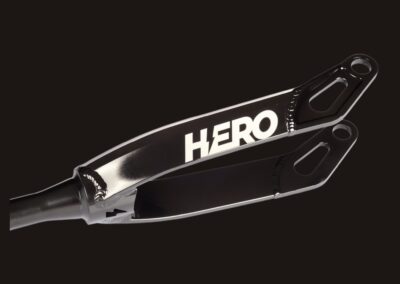

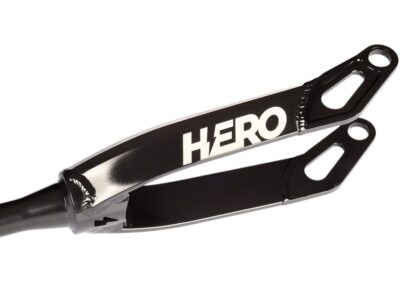

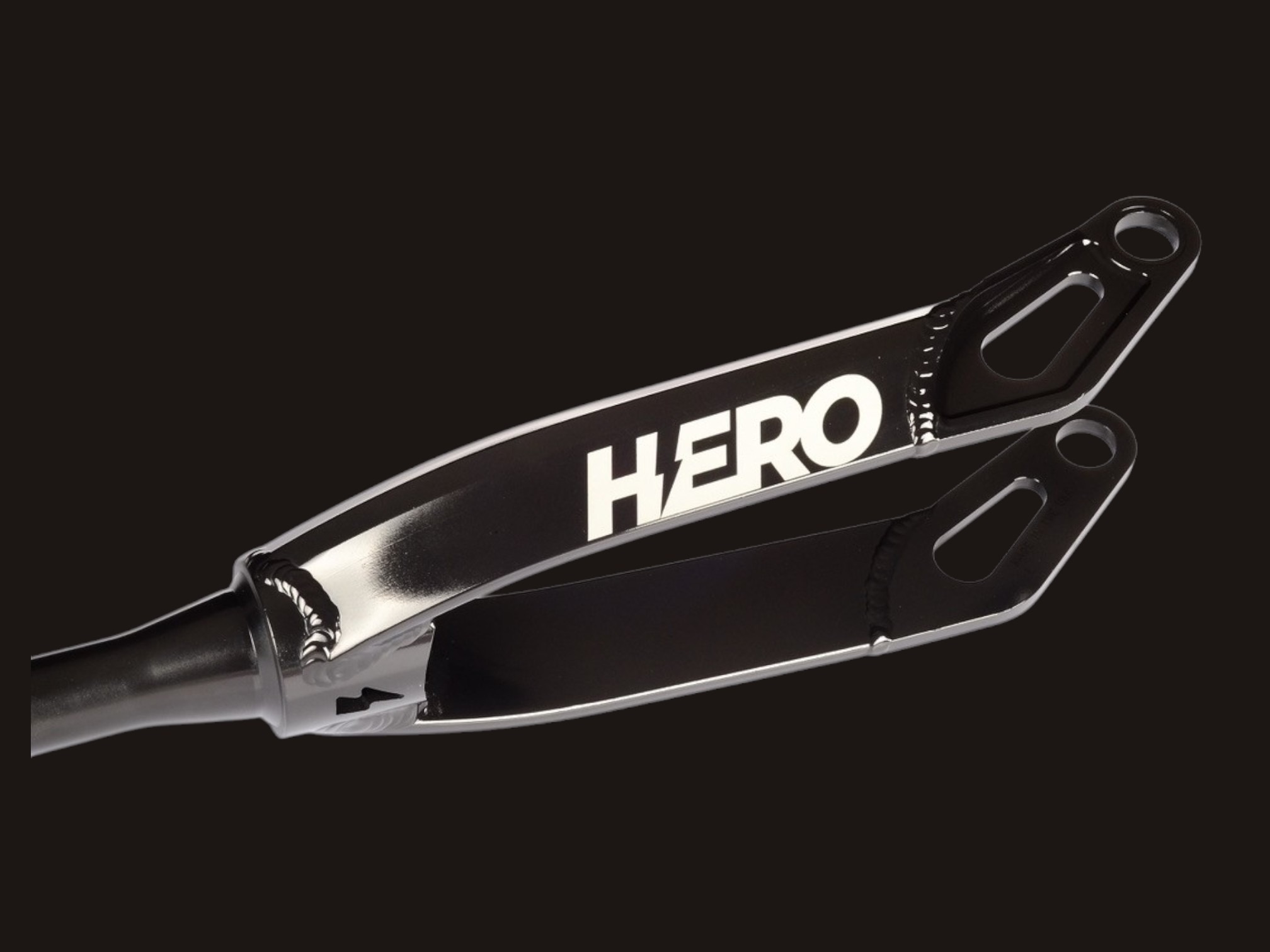

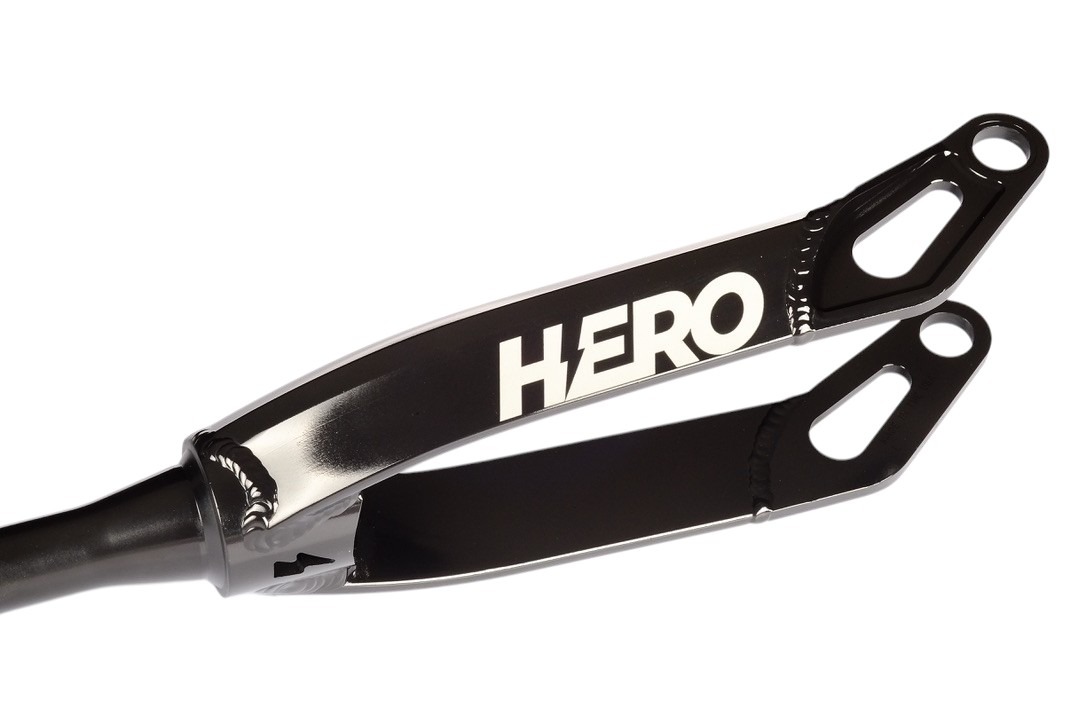

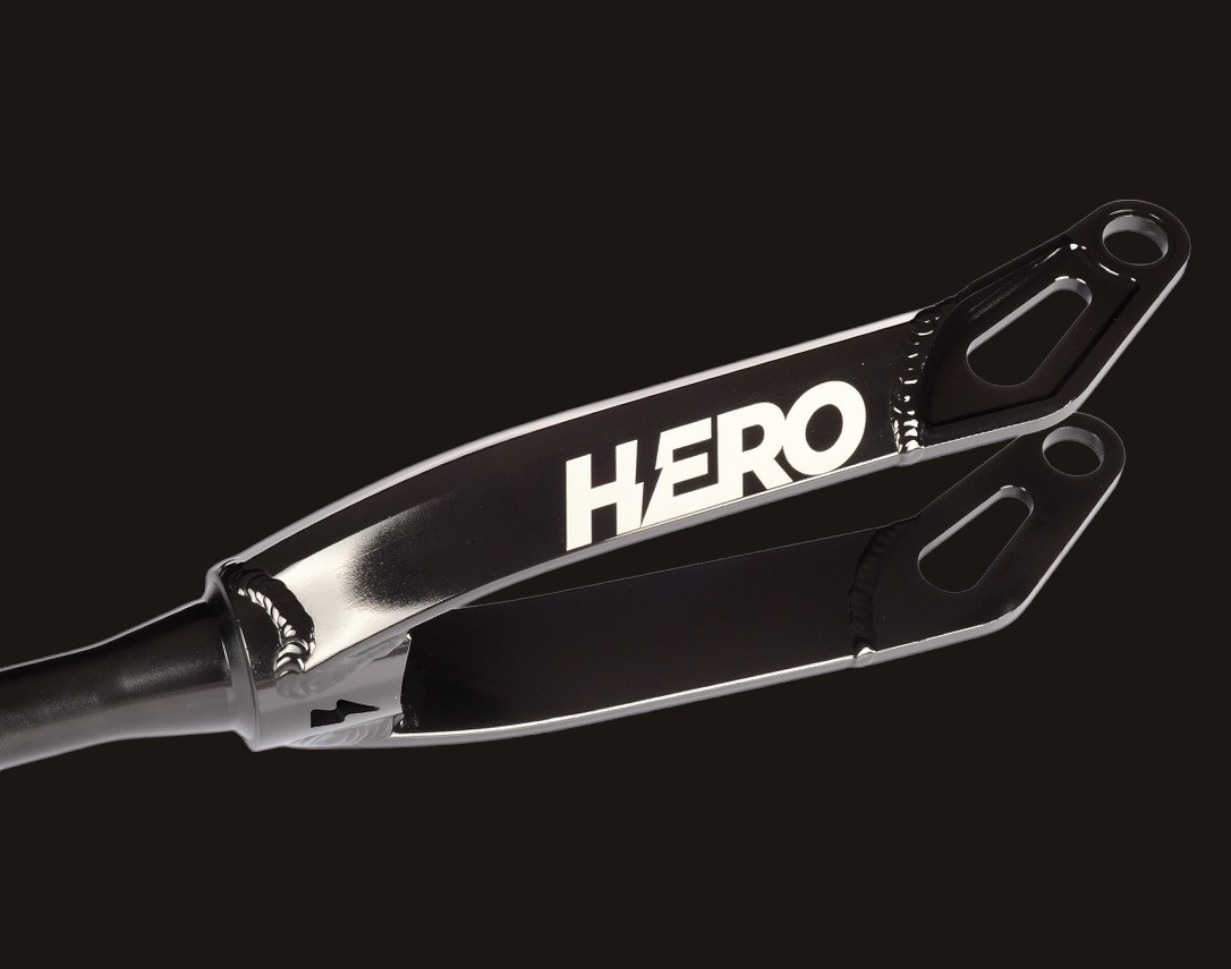

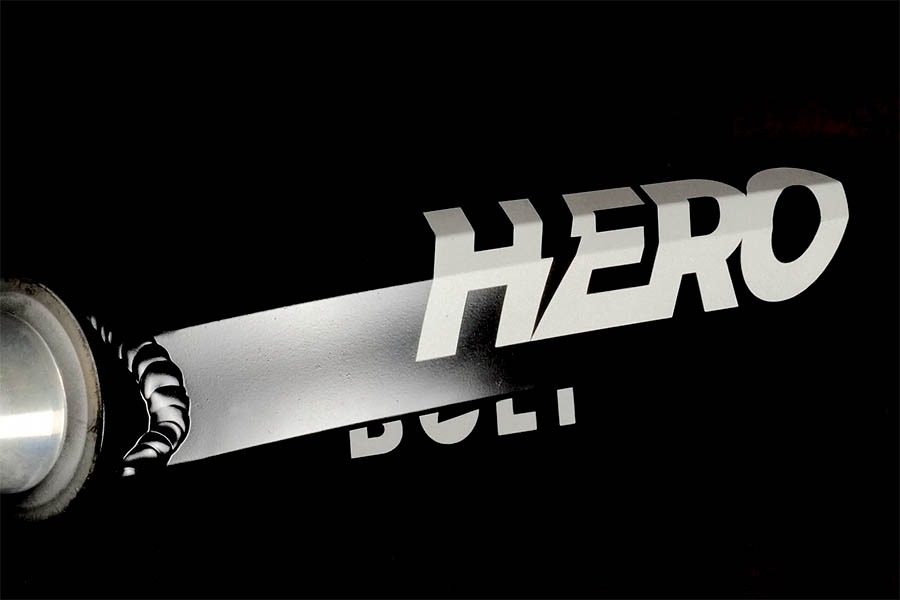

THUNDERBOLT

Aluminum Race Forks

PRECISION MADE IN USA

Compared to all those chunky carbon copies out there, the HERO Thunderbolt with its sleek lines and its machined + welded aesthetic screams American race muscle!

Our one piece steer tube/crown begins as a 3 pound/ 9″ long solid bar of aluminum that is 100% milled to size and spec. The legs are custom extruded and bent tubes, thin-wall and large diameter tubing for strength while saving weight. The coped joints are laser cut — meaning this entire fork is essentially machined with virtually zero gap between the welded elements. Our dramatcally angled drop-out interface is also forward thinking for greater weld area and greater strength. The result will be a ride that’s as stiff as any carbon fork while delievring a smoother feel on the track.

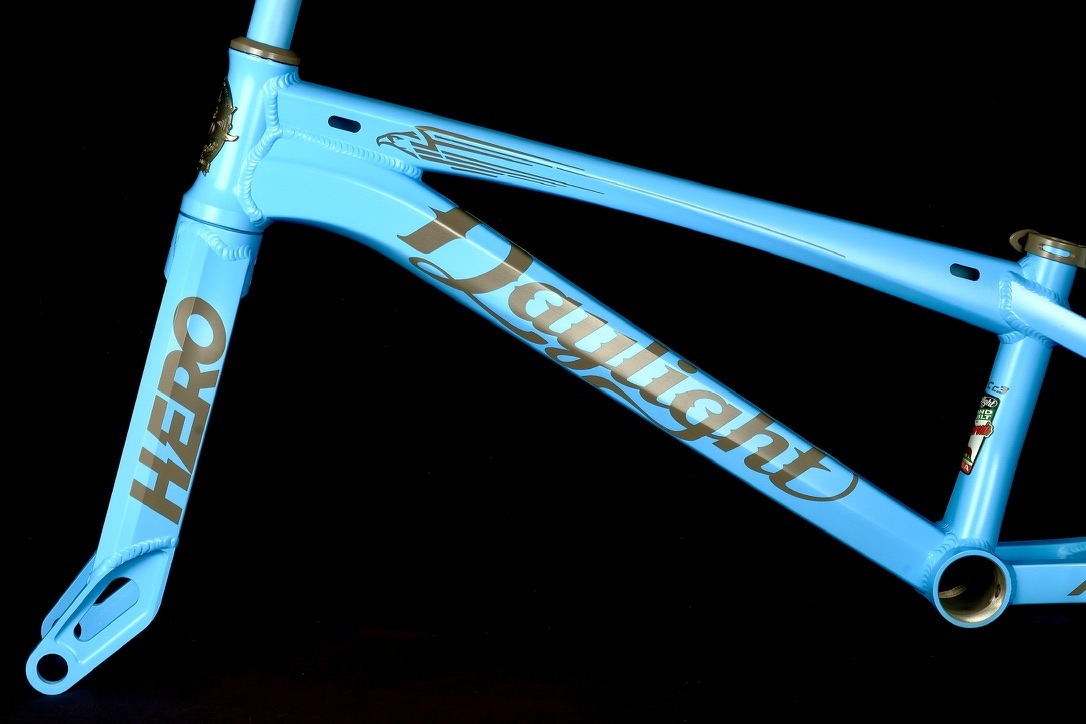

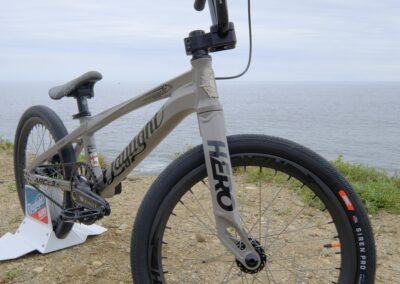

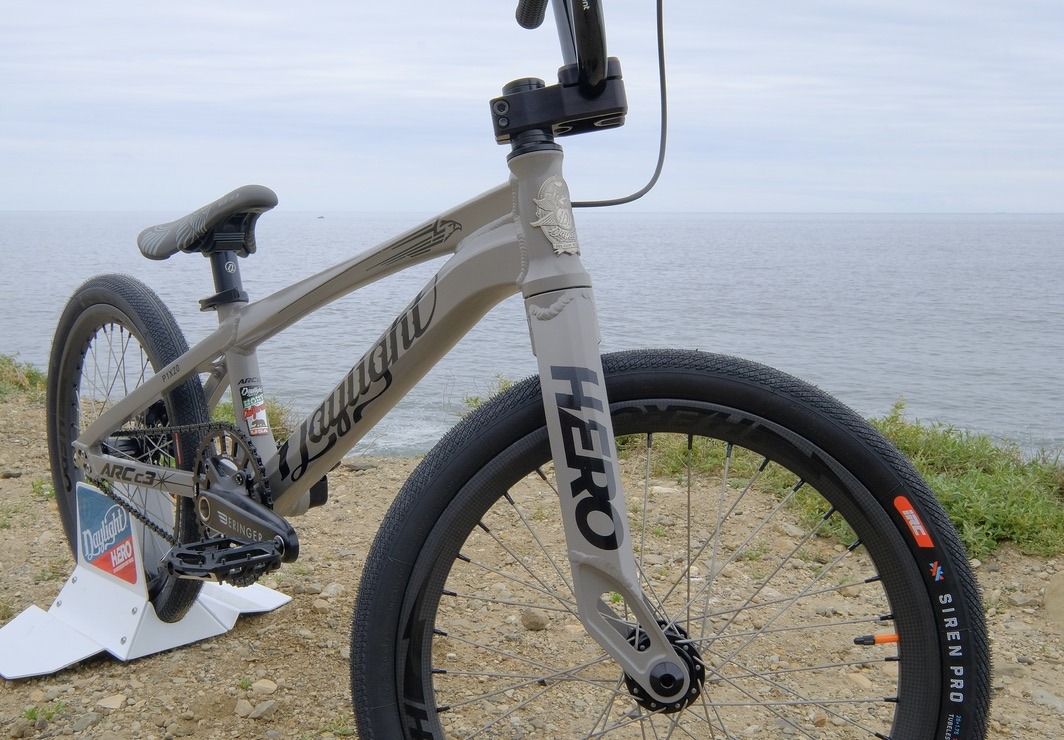

A fork that rides this good needs to look even better so obviously we designed the Thunderbolt to look great with our Daylight frames but also to look great with any frame. But being a Daylight product that also means, in addition to black powder-coat for a less costly option for stock, the Hero Thunderbolt can be beautifully custom finished from our almost unlimited spectrum of ceramic colors. We’re even offering two different graphic looks— “Humble” for a subtle tone-on-tone graphic, or “Proud” for a bold, high-contrast style.

  • PRECISION MADE IN USA
  • 170mm tapered steer tube (1-1/8”-1.5“)
  • CNC Alloy top cap/compressor bolt with internal Steer tube threads for the top cap
  • 303mm axle to crown measurement on the 20” fork
  • OS20 – 333mm, 24”- 354mm, 26”- 395mm, 29”- 429mm
  • 20″, OS20, and 24″ are designed around a 1.5-1.85″ tire
  • 26″ and 29″ fit 2.3″ and larger tires
  • Custom aero-shaped fork legs
  • CNC’d 20mm drop outs (Fits most 10mm/3/8″ adapters)
  • Sizes: Pro 20”, OS20, 24″, 26″, & 29”
  • 623g (22oz.) for Pro 20″

KELVIN

CNC Aluminum Cranks

  • CNC’d 7075 aluminum arms and spindle
  • Titanium pinch bolts
  • Lightweight but rigid & strong crank design
  • Chainring not included (3-bolt direct mount)
  • Lengths: 165mm, 170mm, 175mm, 180mm
  • Patented aluminum spindle design
  • Compatible BB Type: 24mm outboard
  • Weight: 750g (w/o chainring)

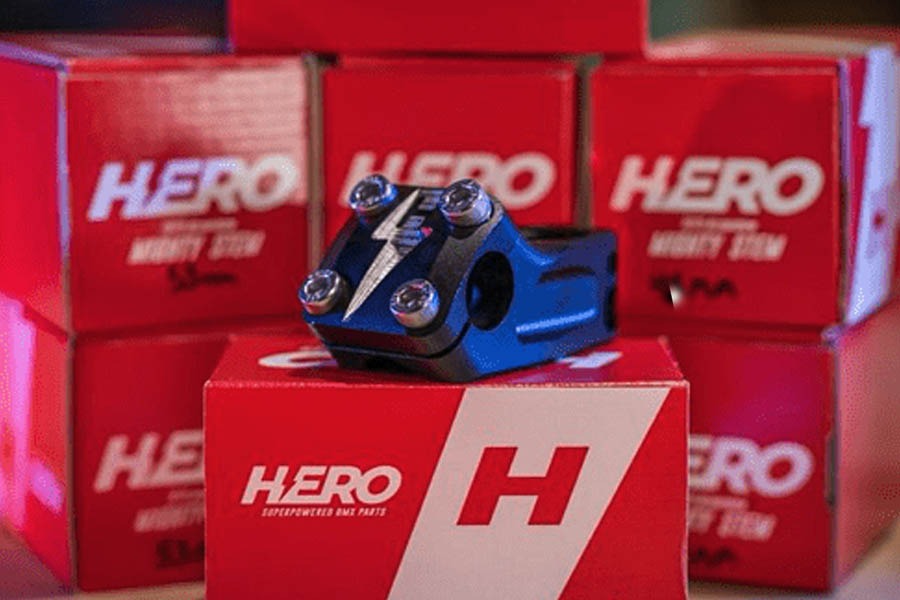

PHOTON

CNC Aluminum Stem

  • CNC’d aluminum body and face plate
  • Titanium or stainless steel bolts
  • 45 degree, 22.2mm (7/8”) bar mount
  • M8 bolts for maximum grip strength
  • Lengths: 48, 53, and 58mm
  • Weight: 240g (53mm w/ Ti bolts)
