Sale!

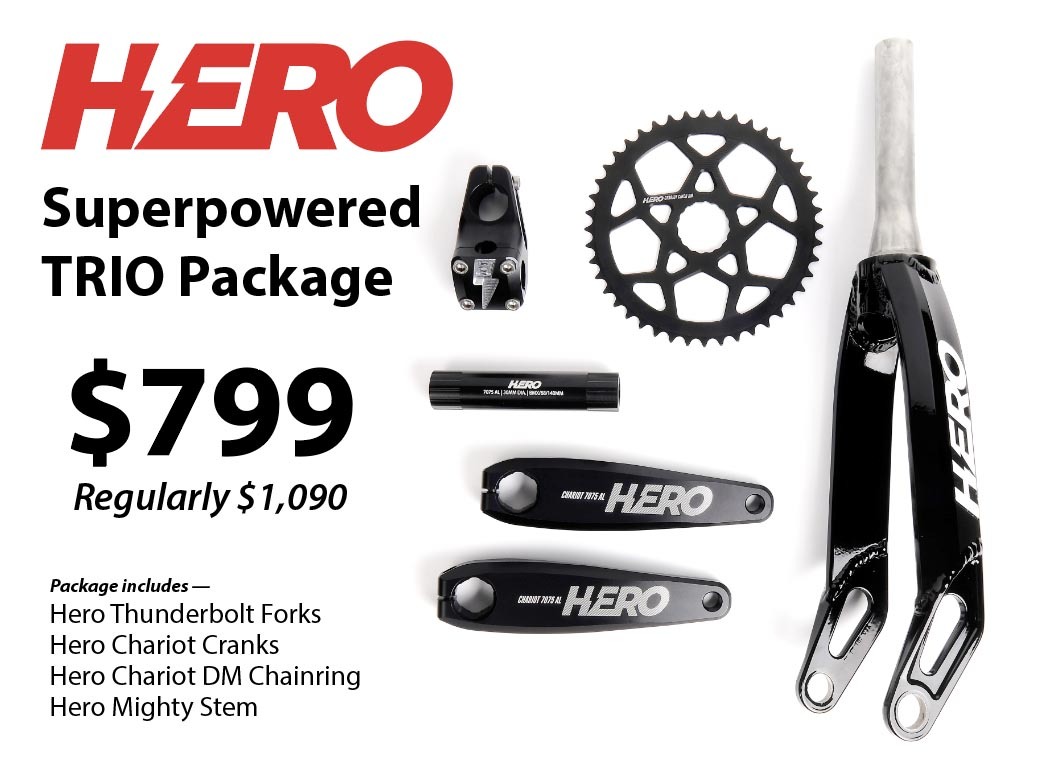

Hero Trio Package

Hero Trio Package

Original price was: $1,090.00.Current price is: $799.95.

The HERO Superpowered Trio includes the following:

  • Hero Thunderbolt Forks
  • Hero Chariot Cranks
  • Hero DM Chainring
  • Hero Mighty Stem

Forks are black with white logo stickers. All parts come in stock black with laser logos. Call us to get a package price on this trio with special finishes.

Hero Thunderbolt Fork

PRECISION-MADE IN USA
Compared to all those chunky carbon copies out there, the HERO Thunderbolt with its sleek lines and its machined + welded aesthetic screams American race muscle!
Our one piece steer tube/crown begins as a 3 pound/ 9″ long solid bar of aluminum that is 100% milled to size and spec. The legs are custom extruded and bent tubes, thin-wall and large diameter tubing for strength while saving weight. The coped joints are laser cut — meaning this entire fork is essentially machined with virtually zero gap between the welded elements. Our dramatically angled drop-out interface is also forward thinking for greater weld area and greater strength. The result will be a ride that’s as stiff as any carbon fork while delivering a smoother feel on the track.
A fork that rides this good needs to look even better so obviously we designed the Thunderbolt to look great with our Daylight frames but also to look great with any frame. But being a Daylight product that also means, in addition to stock option of gloss black Cerakote with a natural "humble" logos, the Hero Thunderbolt can be beautifully custom-finished from our almost unlimited spectrum of ceramic colors with "proud" graphics.
• 170mm tapered steer tube (1-1/8”-1.5“)
• Alloy top cap/compressor bolt with internal
• Steer tube threads for the top cap
• 303mm axle to crown measurement on the 20” fork
• Industry standard 32mm reach (offset)
• Custom aero-shaped fork legs
• CNC’d 20mm drop outs (available with 3/8/10mm adapters)
• Sizes: Pro 20”, 24”, 26” & 29”
• 620g (1.37 lbs.)
Bundled product placeholder image

Hero Chariot Cranks

• Arms are machined from 7075 T-6 aluminum
• Spindle is machined from 7050 T-6 aluminum
• Chainrings are machined from 6061 T-6 aluminum
• 30mm spindle works with any BB30 bottom bracket
• Cinch Direct Mount standard for chainrings/spiders
• Arm lengths available from 165-180mm
• CNC’d 104mm BCD 4-bolt spider is available
• Chainrings available in 39, 40, 41, 42, 44, 45, 46, 47, & 49t
• Q-factor 167-169mm / Chain line 45-48mm
• Weight - 789g/set (170mm)

Bundled product placeholder image

Hero Direct-Mount Chainring

Bundled product placeholder image

Hero Mighty Stem

  • Precision-machined 7075 aluminum body and face plate
  • Stainless steel bolts
  • 45 degree, 22.2mm bar mount
  • M8 bolts for maximum grip strength
  • Lengths: 48mm or 53mm

Category:

Description

The HERO Superpowered Trio includes the following:

  • Hero Thunderbolt Forks
  • Hero Chariot Cranks
  • Hero DM Chainring
  • Hero Mighty Stem

Forks are black with white logo stickers. All parts come in stock black with laser logos. Call us to get a package price on this trio with special finishes.

Additional information

Weight 10 lbs
Dimensions 28 × 8 × 6 in

Hero Thunderbolt Fork

SIZE:

20", OS20 Fork, 24" Fork, 26" Fork, 29" Fork

Hero Chariot Cranks

Crank Length

170mm, 175mm, 177.5mm, 180mm

Hero Direct-Mount Chainring

Chainring Size

39T, 40T, 41T, 42T, 44T, 45T, 46T, 47T, 49T

Hero Mighty Stem

Stem Length

48mm, 53mm, 58mm
